The Anybus CompactCom B40 for EtherNet/IP is a high-performance network interface in Brick format — ready-made with software and hardware to enable communication between your device and the EtherNet/IP network.

ADD YOUR OWN CONNECTORS AND PERIPHERALS

The B40 Brick gives you the flexibility to add your own connectors and network isolation. An alternative is to use the ready-made connector board from HMS. The B40 Brick is ideal for device manufacturers who are looking for a semi-integrated solution where connector flexibility, size and cost are key elements.

ONE IN-DESIGN – ACCESS ALL NETWORKS

By implementing the B40 Brick into your product line, you can get connected to other B40 supported networks simply by switching to another Anybus Brick.

GET REAL-TIME ETHERNET/IP COMMUNICATION

The B40 Brick enables fast communication between your device and EtherNet/IP. The Brick supports generic device profiles and has Black Channel support allowing for CIP safety implementation. It also comes with a dual port switch implemented in the network processor — the award-winning Anybus NP40.

With its fast data transfer and very low latency, it's the perfect match for even the most demanding industrial applications.

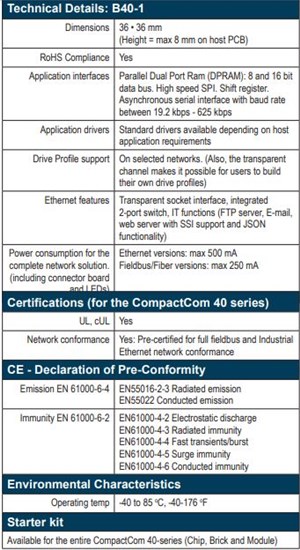

Features and benefits

• A ready-made EtherNet/IP connectivity solution
• Flexibility to add your own connectors and peripherals to limit size and costs
• Easy mounting to your host PCB design
• Short in-design with free assistance from HMS ensures a fast time to market
• ODVA pre-certified for network compliance (enables faster network certification)
• Fast data transfer: Up to 1448 bytes of process data in each direction, Up to 1500 bytes of explicit messaging
• Very low process data latency
• Event-based interface method enables easy access to input and output data at any time
• Fast, event-based application hardware interfaces: 8/16-bit parallel and high speed SPI. I/O (shift register interface) is also available.
• Black channel support enables CIP safety implementation
• IIoT ready: Includes Email Client, Web server with customizable content, SSI functionality and FTP server
• Extended flash-based file system with two-disc access (internal and external)
• Transparent Socket Interface handling the complete Ethernet frame (support for 20 socket connections).
• Solid security: Mandatory software signatures prevent unauthorized software to be downloaded to the module. Furthermore, encryption is used to prevent illicit copying.
• A ready-made network interface, just add your own connectors
• The Anybus CompactCom B40 is a ready-made network interface where you have the flexibility to add your own connectors (DSUB, RJ45, M12 etc) and network isolation. An alternative is to use the ready-made connector board from HMS. The brick is ideal for device manufacturers who are looking for a semi-integrated solution where connector flexibility, size and cost are key elements.
• Based on the Anybus NP40 network processor
• The onboard network processor — Anybus NP40 — with integrated and optimized infrastructure solutions like high-performance Ethernet switches with on-the-fly processing and cut-through switching with very low latencies. The award-winning processor enables very fast data transfer between your machine and the network — the basis for features like profile support and synchronization.
•
• Connector boards

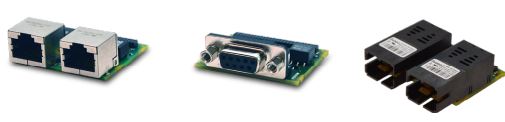

• The brick is mounted on the host PCB to enable communication with the chosen network. HMS offers connector boards for all supported networks to facilitate your indesign.
• By just switching to another Brick and connector board, you can get connected to any of the other industrial networks with the same hardware. Fiber optic connectors available for PROFINET IRT
•
•

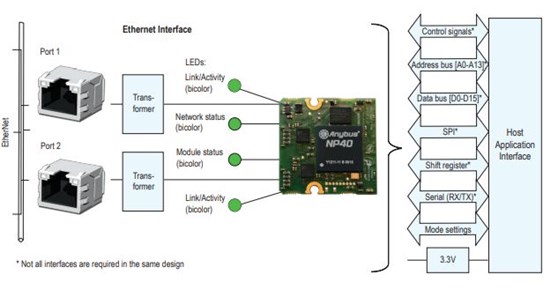

• B40 Ethernet 2-Port Block Diagram
•
• Real-Time-Accelerator for best-in-class latency

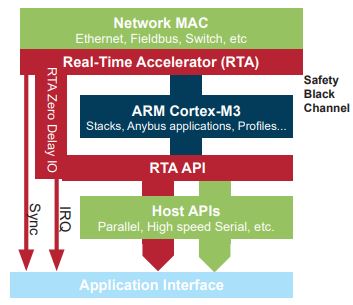

• The NP40 network processor integrates HMS unique IP to provide best-in-class latency and deterministic real-time for demanding industrial applications like motion control. The Real-Time Accelerator (RTA) works on several levels from “on-the-fly” protocol preprocessing on the network controller level to a zero delay API which guarantees instant access to network control data. The configurable RTA interrupt with several network event indications provides the means for an optimized integration with the host application.
•
